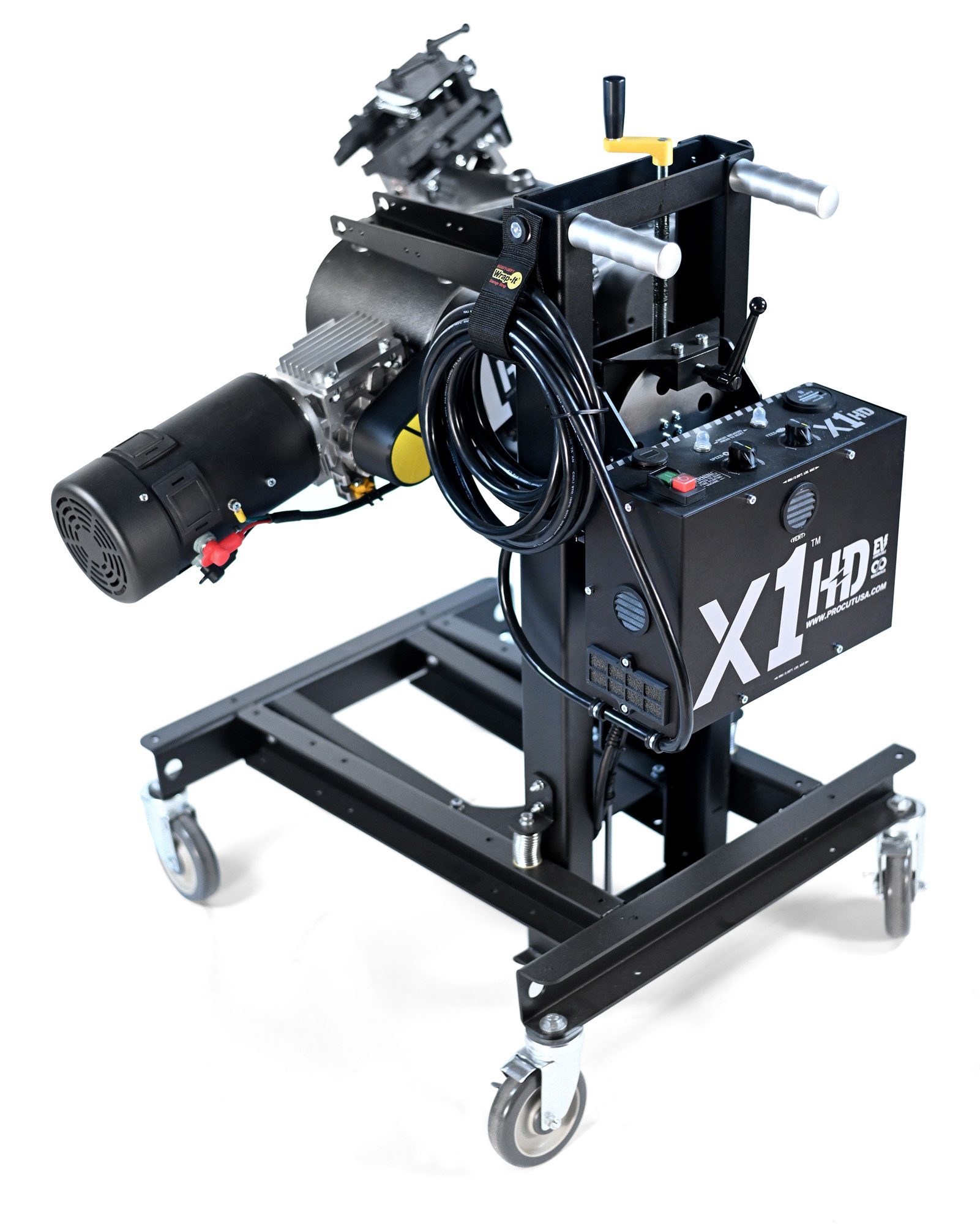

The X1is powered by a 48V DC variable speed motor with the power to turn bus and truck axles. It's low range gear box provides 30% more torque while adjustable tool arms and 190mm feed screw allow techs to match-machine the largest rotors in the industry!
| Max Rotor Thickness | .00" |
| Max Rotor Thickness | 0.20" |
| Max Rotor Diameter | 17.1" |
| Max Friction Face | 4.00" |
| Max Depth of Cut | 0.0015" / Side |
| Weight | 8.12 lbs |
| Spindle Speed | 0-90 rpm |
| Cariage Speed | 0.005" / rev |
| Motor | 2 HP Peak |
| Shipping Weight | 350 lbs |
| Electrical Supply | 90-264VAC 50/60Hz 1ph |
| Feed Distance | 7.48" |
The majority of the rotors that are thrown away can been saved and made as good as new with a Pro-Cut Rotor Matching System. Even in areas where rust is a challenge you�ll find that most rotors can be machined and matched to the hub. Your customer gets a premium brake job without buying un-needed parts� and your shop makes higher profit on the job.
