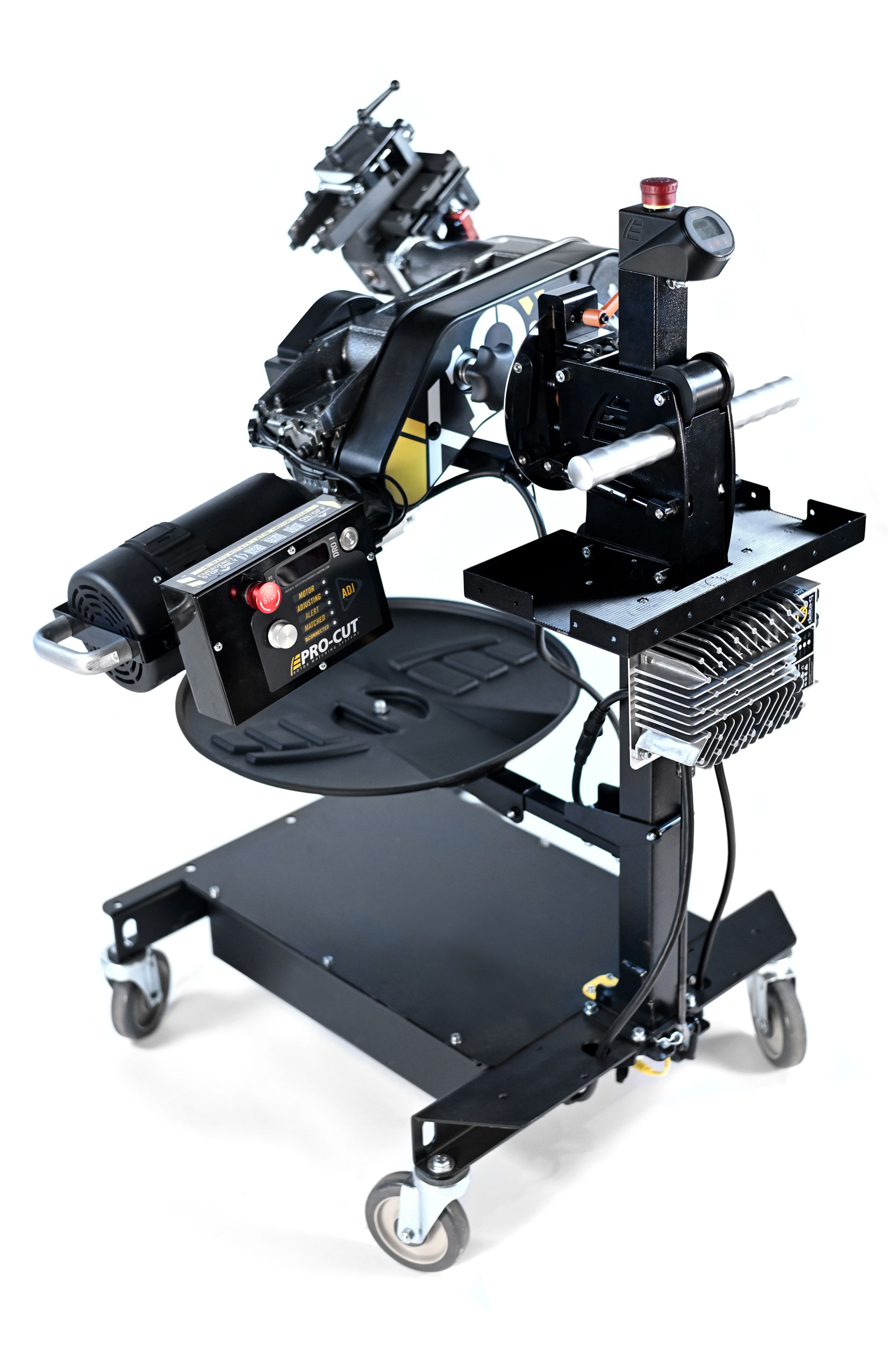

X19

World's FIRST Cordless On-Car Lathe!

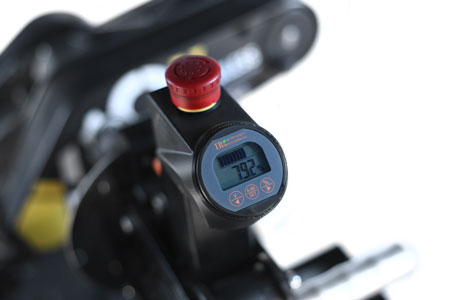

The X19 is a huge step forward in on-vehicle rotor matching. The computer system provides disc tracking, maintenance alerts, variable speed control, and includes a sophisticated battery management system. The X19 is the first and only rotor matching system in the world to be powered by a 48V 50Ah rechargeable battery. Expect smooth operation, tighter run-out tolerances, and superior surface finishes without ever tripping over a power cord! You need to see it to believe it. Techs will get a over 8 hours of operating time from a single charge and the lathe can be plugged in for immediate power from the wall if needed. No range anxiety!

What's Included

  • Variable speed 48V DC motor
  • Performance Plus Cutting Head
  • New PFM 2.0 Electronics
  • Rechargeable 48V 50Ah Battery
  • 3000 charge cycles
  • 6 LED on-board work light

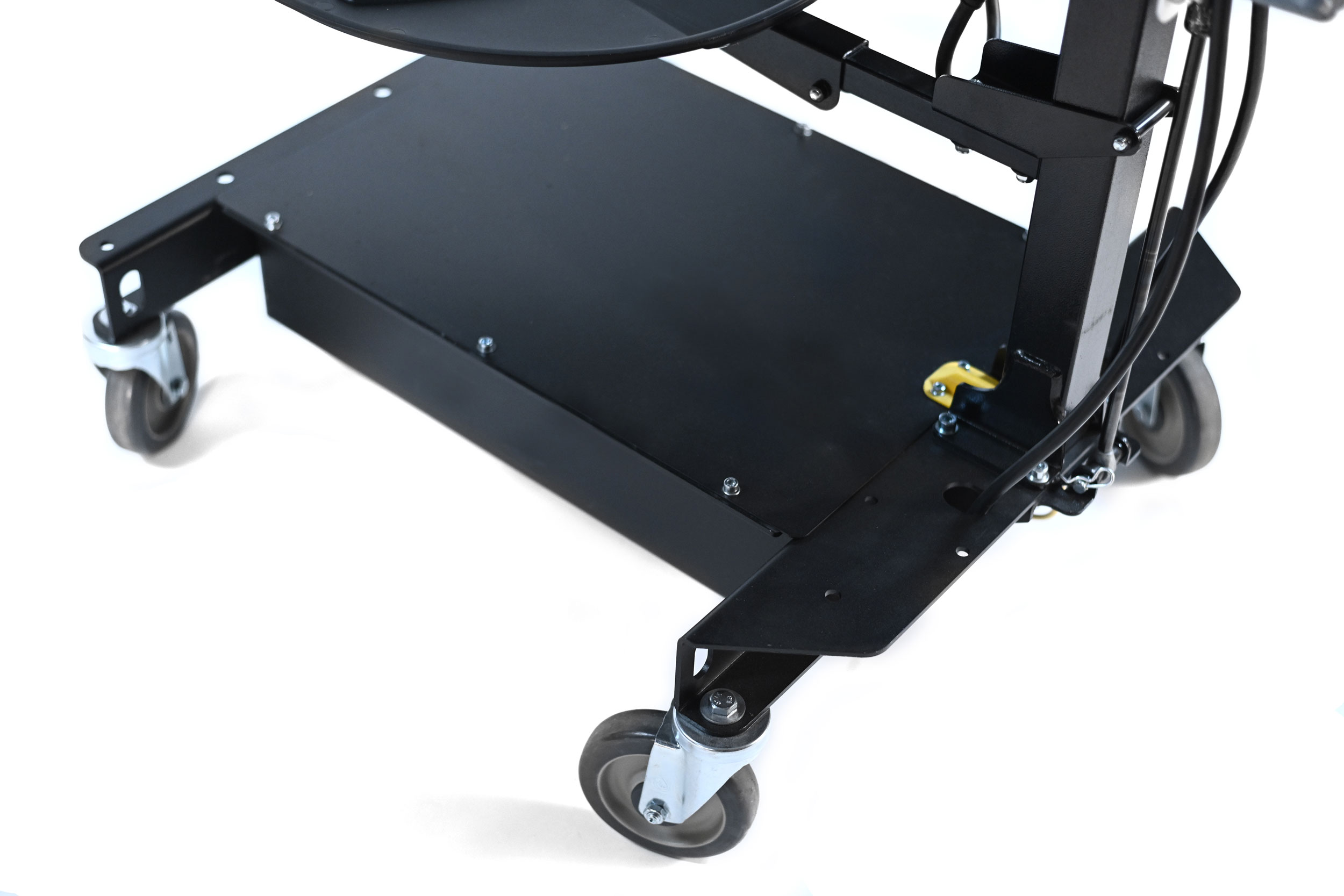

  • 4 Wheel, 4 Axis, Adjustable Trolley

Watch

Machine Specifications

PERFORMANCE PLUS CUTTING SPECS
  • Maximum Rotor Thickness 2.0"
  • Minimum Rotor Thickness 0.20"
  • Maximum Rotor Diameter 17.1"
  • Maximum Friction Face 3.85"
  • Battery recharge time from 20% 2-3 Hours
  • Battery Weight 58.4 lbs
  • Spindle Speed 55-130 RPM
  • Carriage Speed 0.005" / rev.
  • Motor 1 HP continuous, 2 HP Peak
  • Shipping Weight 265 lbs.
  • Electrical Supply 90-264VAC 50/60Hz 1ph
  • Feed Distance up to 7.48"
PRECISION-MATCH CUTTING HEAD (Optional)
  • Maximum Rotor Thickness 1.81"
  • Minimum Rotor Thickness 0.2"
  • Maximum Rotor Diameter 15.6" to 17.1"
  • Maximum Friction Face 3.85"
  • Maximum Depth of Cut 0.015" / Side
  • Weight 9.08 lbs

SELL GREEN, THRILL CUSTOMERS and MAKE MORE MONEY!

The majority of the rotors that are thrown away can been saved and made as good as new with a Pro-Cut Rotor Matching System. Even in areas where rust is a challenge you�ll find that most rotors can be machined and matched to the hub. Your customer gets a premium brake job without buying un-needed parts� and your shop makes higher profit on the job.
